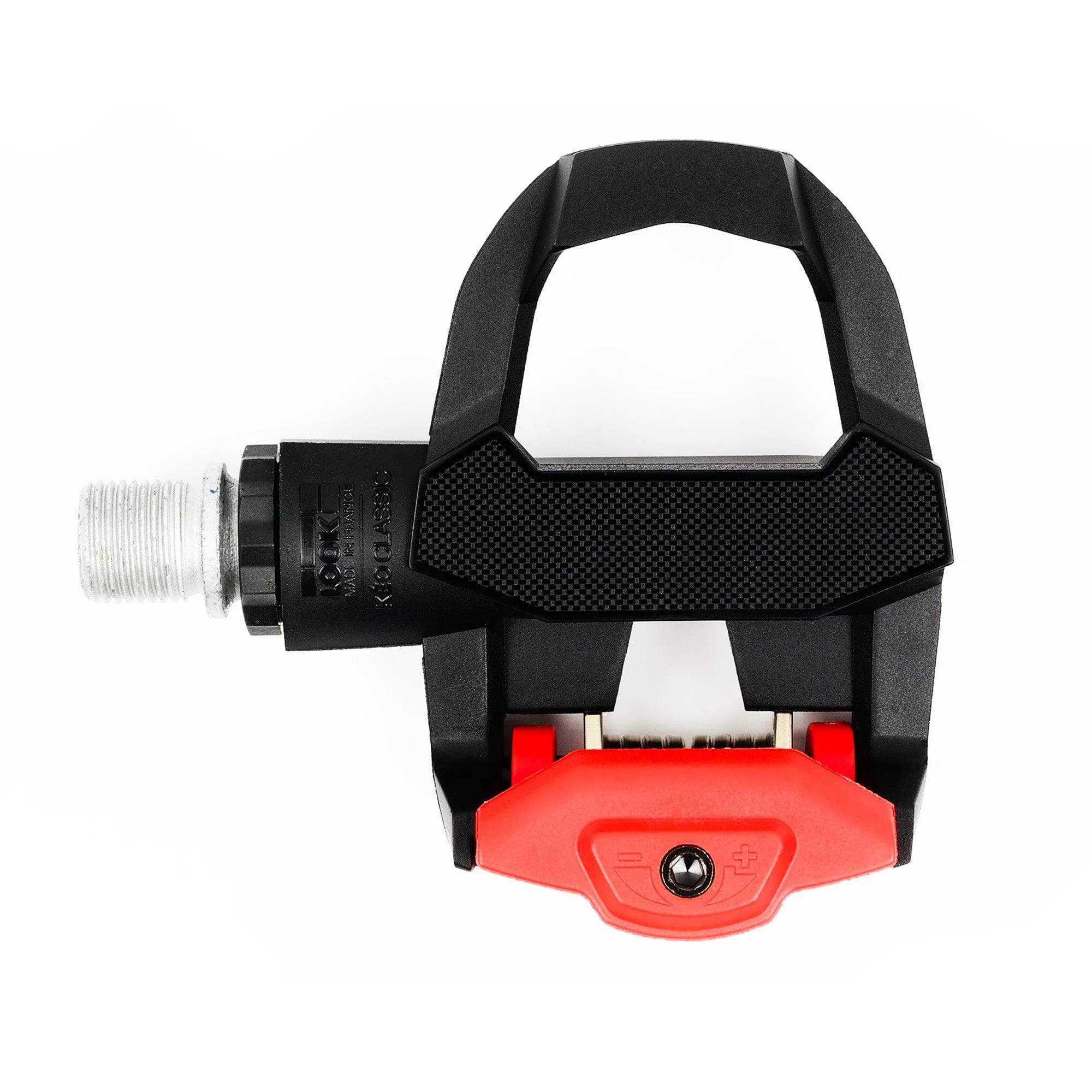

KÉO CLASSIC 3

COMFORT AND STABILITY

Discover the fun and the benefits of riding with the Kéo Classic 3 clipless pedal.

Simple to use, it is impossible to adjustment the cleat entry/release tension too low for an easy clip out. Its large and wide contact surface provides excellent pedalling stability.

TECHNOLOGIES

CHROMOLY SPINDLE FOR MORE RELIABILITY

The Kéo Classic 3 spindle is made up of an oversized steel axle with miniature ball bearings (12 mm inside x 18 mm outside) and a needle bearing cartridge for improved wear resistance. A spacer is used to hold the needle bearing cartridge in place.

A new method of fitting the spindle into the pedal body also ensures the prolonged reliability of our pedals. LOOK spindles are only approved after a rotational test of 2 million cycles at 100tr/min with a load of 90kg on the centre of the pedal and an eccentric rotation (creating a shock on each rotation).

LOOK axles are only approved after a rotational test of 2 million cycles at 100 rpm with a load of 90 kg on the centre of the pedal and an eccentric rotation (which creates stress on each revolution). This is equivalent to a sprint by André GREIPEL of 1700 watts at 100 rpm for 333 hours! This test is much more demanding than the current standard, the ISO 4210.

SPECIFICATIONS

USAGE: Beginner to advanced
BODY: Composite
AXLE: Chromoly
THREADING: 9/16 X 20 mm
BEARINGS: 1 ball bearing, 1 needle bearing cartridge
PEDAL STACK HEIGHT: 15,7 mm
DISTANCE PEDAL SPINDLE / CRANK ARM: 53 mm
CONTACT SURFACE AREA: 400 mm²
FLOAT: 8 to 12 adjustable spring
CLEATS: Kéo Grip Cleats
ANGULAR MOVEMENT: 0 °, 4.5 ° or 9 ° according to the cleat colour (Black, Grey, Red)
PEDAL WEIGHT:140 gr (348 gr per pair with cleats and screws)
COLOURS: Black
ACCESSORIES: A pair of Grey Kéo Grip cleats screws
GUARANTY: 2 years
